National Instruments VST Frequency Extender
QM1007




Availability: Call or email for quote
Product Code: QM1007
Request a Quote


Download the current datasheet

ApplicationsFeatures
  • Radar test systems and target simulators
  • Communication systems
  • EW Systems
  • General purpose RF frequency conversion
  • Military end-use
  • 1 GHz Bandwidth
  • One Channel of RF Upconversion
  • One Channel of RF Downconversion
  • 120 dB dynamic range on transmit
  • Standard 1U 19-inch Rack Mount
  • Internal common LOs

Product Number Downconverter
Channels
Upconverter
Channels
fRF (GHz) fIF (MHz) IF BW (MHz) Nominal
UC Gain (dB)
Nominal
DC Gain (dB)
QM1007-8.5-9.5 1 1 8.5 - 9.5 2.0 - 3.0 1000 -50 - +10 0 - 30
QM1007-9.0-10.0 1 1 9.0 - 10.0 2.0 - 3.0 1000 -50 - +10 0 - 30
QM1007-9.5-10.5 1 1 9.5 - 10.5 2.0 - 3.0 1000 -50 - +10 0 - 30
QM1007-15.5-16.5 1 1 15.5 - 16.5 2.0 - 3.0 1000 -50 - +10 0 - 30
QM1007-16.0-17.0 1 1 16.0 - 17.0 2.0 - 3.0 1000 -50 - +10 0 - 30
QM1007-16.5-17.5 1 1 16.5 - 17.5 2.0 - 3.0 1000 -50 - +10 0 - 30


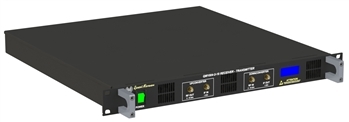

The QM1007 is a frequency extender for the National Instruments Vector Signal Transceiver (models PXIe-5646R and PXIe-5840. It performs a fixed frequency conversion from a 2.0 - 3.0 GHz IF frequency to X-band, ensuring the lowest possible phase noise. Programmable attenuation of 60 dB on transmit and 30 dB on receive allow for a total 120 dB nominal dynamic range on transmit, which is useful for radar target simulation. The programmable attenuators may be controlled via external TTL.

The unit is packaged in a 1U 19" rack form-factor.


  • Associated Products
  • Options
  • Warranty
  • Manuals
  • Software
Product Number Description
QM1002-2-18-1Single Channel 1U 19-inch Rack 2-18 GHz RF Upconverter Visit
QM1002-2-18-2Dual Channel 1U 19-inch Rack 2-18 GHz RF Upconverter Visit
QM1002-8-12-1Single Channel 1U 19-inch Rack 8-12 GHz RF Upconverter Visit
QM1002-8-12-2Dual Channel 1U 19-inch Rack 8-12 GHz RF Upconverter Visit
QM1003-2-18-1Single Channel 1U 19-inch Rack 2-18 GHz RF Downconverter Visit
QM1003-2-18-2Dual Channel 1U 19-inch Rack 2-18 GHz RF Downconverter Visit
QM1003-8-12-1Single Channel 1U 19-inch Rack 8-12 GHz RF Downconverter Visit
QM1003-8-12-2Dual Channel 1U 19-inch Rack 8-12 GHz RF Downconverter Visit
QM1004-8-12Combined 1U 19-inch Rack 8-12 GHz RF Upconverter and Downconverter (1 channel each) Visit

Option Description
See datasheet for options list
The $(Product) comes with the manufacturer's standard one year parts and labor warranty.
Manual
QM1007-8.5-9.5 User Manual v3.1.0 Visit
QM1007-16.0-17.0 User Manual v0.1.0 Visit
QM1007-9765-1200 User Manual v0.1.0 Visit

Software
QM1007 VST Frequency Extender Control GUI v3.1.0 Download

QM1007-8.5-9.5 and QM1007-16.0-17.0 Firmware
QM1007 VST Frequency Extender Firmware Update v3.1.0 Download

QM1007-9765-1200 Firmware
QM1007-9765-1200 Firmware Update v3.3.0 Download
